Mobile Telescopic Antenna Mast With Dynamic Height Adjustment

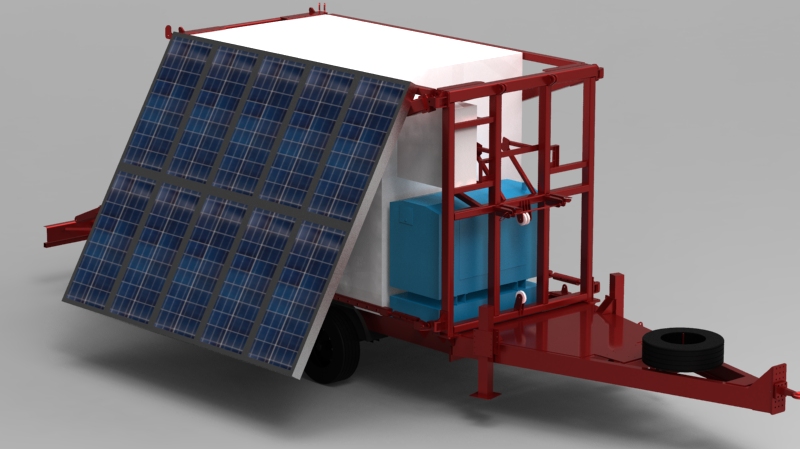

On the picture below is one of our latest products -
Mobile Telescopic Antenna Mast With Dynamic Height Adjustment WITH HYBRID POWER SUPPLY FROM RENEWABLE ENERGY integrated with base station electronics for GSM-UMTS-WIMAX telecommunications. State of the art mechatronics used with Hybrid Box� technology.

Mobile Telescopic Antenna Mast With Hybrid Power Supply

higher QoS, lower BER, reduced OPEX

This is the Mast that solves lots of Your on-site problems:

no ground preparation, reduced site installation area
no civil works permit and no civil works
easy to install in 2 hours, easy to relocate
only 2 technicians required for installation
withstand wind up to 180km/h, automatic height adjustment at preset wind speed
variable heights -15 to 30m
greatly reduced cost of installation and maintenance compared with classic mast
full automated computer controlled base station
no signal interruption during/after adjustment
no mini-link readjustment
ideal for GSM/UMTS/WIMAX
no antenna feeders clamping
integrated power generator with UPS
remote control and parameter monitoring
also applicable as meteorological mast

Technical details:

Max. height in operative condition 30 m

Anchoring area 135 m²

Operative wind velocity 100 km/h

Max. wind velocity 120 km/h

Max. deflection of GSM antenna +/- 2^o

Max: deflection of MW antenna +/- 0,5^o

Max. transportation lenght 10,5 m

Max. transportation width 2,5 m

Max. transportation height 4,0 m

Total transportation weight 9.700 kg

Anchoring on own foots by steel rope

Erection time 2-3 hours

Operators required for erection 2-3

Cables connection on the lowest position of the mast

Positioning of MW antenna from the ground

Climbing on the mast is not neccesery

Automatic height lowering/reduction of the GSM antennas
if wind velocity exceeds set velocity 22,5 m

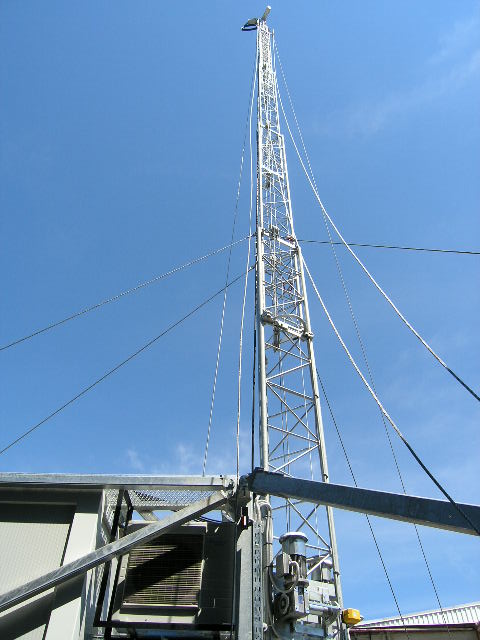

Mobile Telescopic Antenna Mast

Operative wind velocity for 22,5 m 150 km/h

Max. Wind velocity for 22,5 m 180 km/h

More advantages of Mobile Telescopic Antenna Mast:

easy to transport
air-conditioned room for equipment with generator and UPS

Download brochure (1MB).

Max. height in operative condition	30 m
Anchoring area	135 m²
Operative wind velocity	100 km/h
Max. wind velocity	120 km/h
Max. deflection of GSM antenna	+/- 2^o
Max: deflection of MW antenna	+/- 0,5^o
Max. transportation lenght	10,5 m
Max. transportation width	2,5 m
Max. transportation height	4,0 m
Total transportation weight	9.700 kg
Anchoring on own foots by steel rope
Erection time	2-3 hours
Operators required for erection	2-3
Cables connection on the lowest position of the mast
Positioning of MW antenna from the ground
Climbing on the mast is not neccesery
Automatic height lowering/reduction of the GSM antennas if wind velocity exceeds set velocity	22,5 m

Operative wind velocity for 22,5 m	150 km/h
Max. Wind velocity for 22,5 m	180 km/h
